Generac 16 Circuit Pre-Wired Transfer Switch and Load Center Model# RTG16EZA1
Generac 16 Circuit Pre-Wired Transfer Switch and Load Center Model# RTG16EZA1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

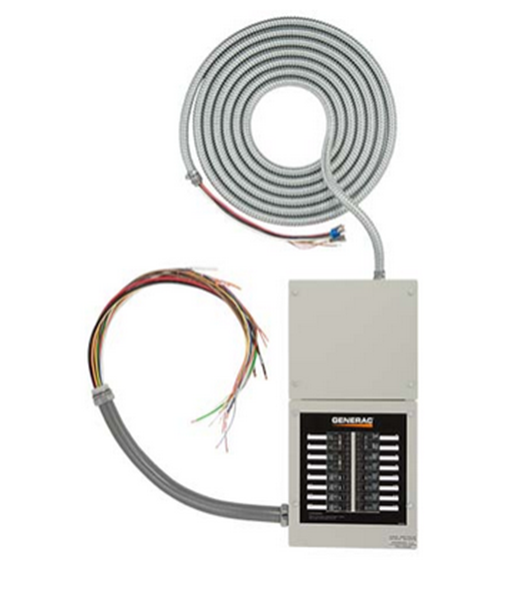

Generac 16 Circuit Pre-Wired Transfer Switch and Load Center, 100 amps, 120/240, 1ø, NEMA 1
Model# RTG16EZA1
Generac pre-wired switches are designed to operate with 17kW, air-cooled generators. This 100 amp transfer switch has an integrated load center for picking up the emergency circuits. It is especially useful where the main service is large and only a portion of the building load will be served by the generators. It has a built in 16 circuit load center to supply only those circuits that are essential during an emergency. All standard and load center transfer switches are UL and CUL Listed and suitable for use as optional standby systems (NEC702).
Breakers:
•5 x 15A (120V) 1-Pole
•5 x 20A (120V) 1-Pole
•1 x 20A (240V) 2-Pole
•1 x 40A (240V) 2-Pole
•1 x 50A (240V) 2-Pole Includes:
•Pre-Wired External Connection Box
•30' Pre-Wired Conduit From Transfer Switch To Generator
•2' Pre-Wired Conduit From Transfer Switch To Main Panel
Recommended Generator Size Range 14kW - 17kW For Use With Generac Generators Only
