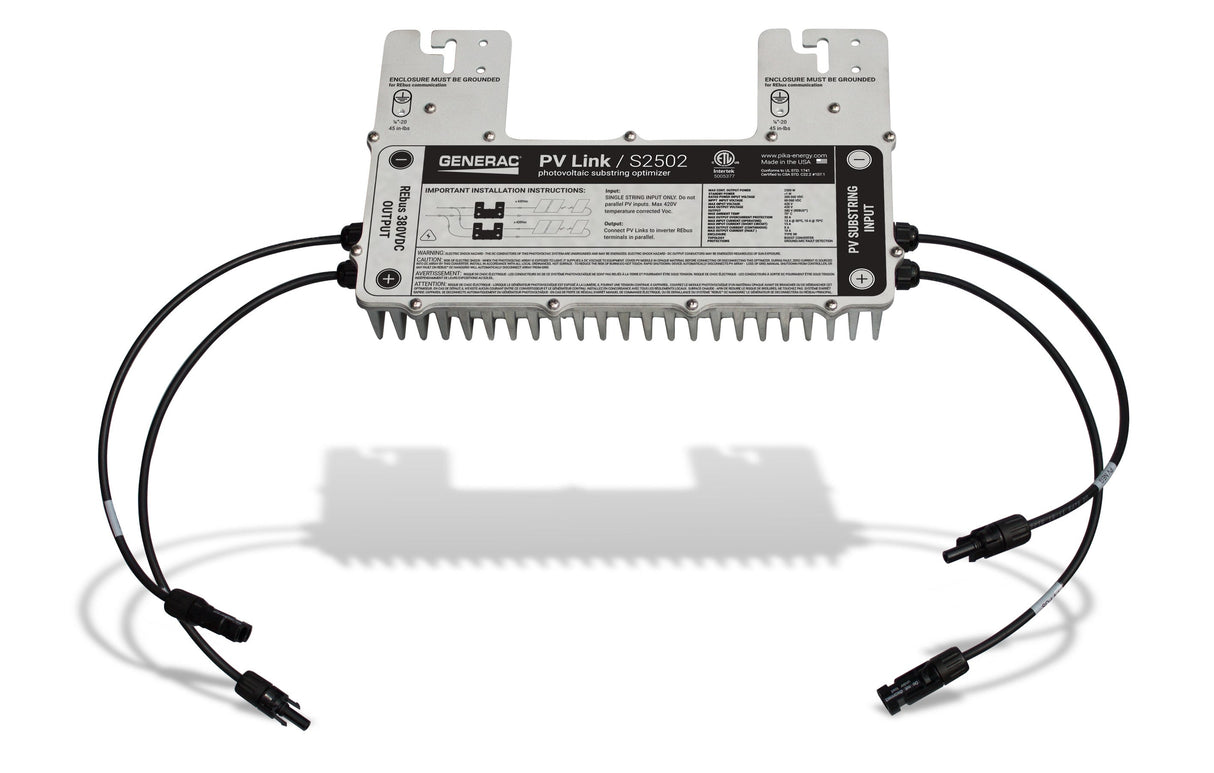

Generac APKE00010 PV Link - 2500W MPPT Substring Optimizer


Price:
$469.99

Description

Generac APKE00010 PV Link - 2500W MPPT Substring Optimizer

  Shipped Direct from Factory

OVERVIEW

  • Rated Power: 2500 W
  • MPPT Voltage Range: 60 - 360 VMP
  • Max Input Voltage (when cold): 420 VOC
  • Nominal Output Voltage: 380 VDC
  • Maximum Output Current: 8 A
  • Max Short Circuit Current (ISC): 18 A
  • Protections: Ground-fault, Arc-fault (Type 1 AFCI, Integrated)
  • Peak Efficiency: 99%
  • Maximum Operating Temperature: 70 °C (158 °F)
  • Dimensions: 51 x 391 x 244 mm (2" x 15.4" x 9.6")
  • Compliance: UL 1741, CSA 22.2

Compatible with SNAPRS for Module Level RSD (Rapid Shutdown Device), MC4, Max 420 VOC

NEC 690.12 - Rapid shutdown (provides a means for first responders to safely de-energize controlled conductors)
