Generac 30 Amp Pre-wired Manual Transfer Switch Kit (6-10 Circuits) Model# 6294

Generac 30 Amp Pre-wired Manual Transfer Switch Kit

(6-10 Circuits) Model# 6294

Safely and easily deliver power from a portable generator to a home’s electrical panel during a power outage. The Generac manual transfer switch eliminates the need to run extension cords to appliances, and allows back-up of hard-wired appliances like the furnace or water heater. Pre-wired for easy, inexpensive installation, back up the most important lights, appliances, and hard-wired items with a portable generator during a power outage.

• Back up lights and appliances (up to 7500 Watts)

• Protect 6 circuits now, and expand to 10 circuits as needs change

• Position like a subpanel (flush or surface mount) inside the home or garage

• Install more easily with included wiring harness

• Use with any portable generators equipped with a 30A twist-lock outlet

Circuits

2 - 15A/120V

2 -20A/120V

1 -20A/240V

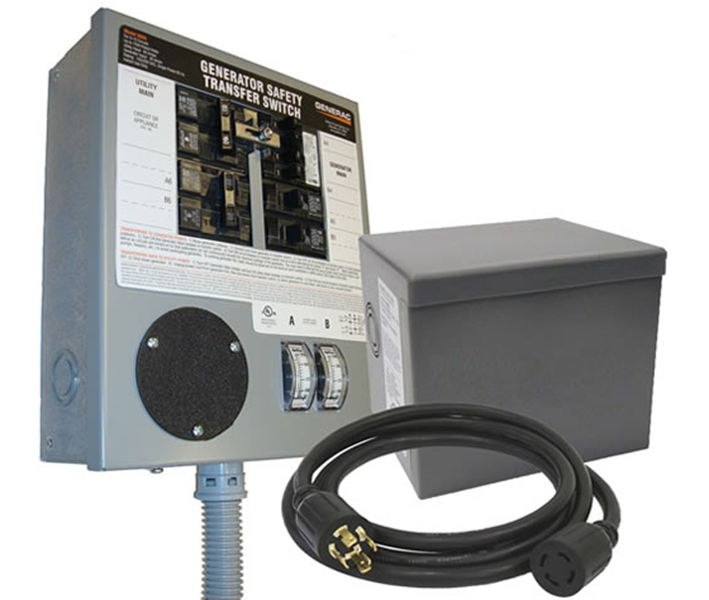

Included with Kit

• Transfer Switch: 30A surface mount

• Cord: 10' 10/4 with L14-30 ends

• Power Inlet Box: 30A resin (must be hardwired)

• Install manual, wiring harness, conduit and fittings, wire connectors

Compatible Portable Generators For use with generators equipped with 30A outlets, including: GP5500, GP6500E, GP7500E, XG6500, XG7000E, XG8000E, XP6500E, XP8000E
