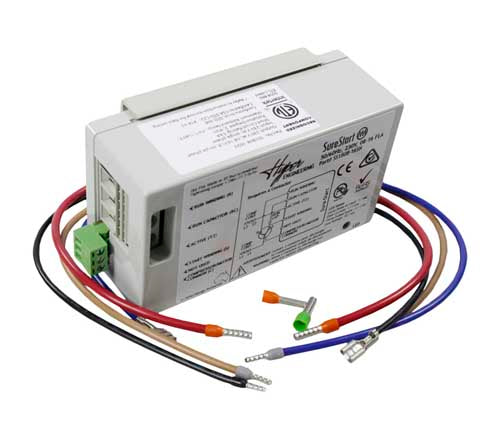

Generac Sure Start Soft Starter 8-16 Amp Part# 10000003764


Price:
$319.99

Description

Generac Sure Start Soft Starter 8-16 Amp Part# 10000003764 or SS1B16-32SN (230V, 60/50Hz, 16-32 FLA)





Single Phase Soft Starters



This product has been developed specifically to soft start large single phase compressors and motors. It provides a dramatic reduction in the starting current but still provides full start torque. It will automatically adjust itself to cover the range of 1.75 to 7 hp. It is fully self-contained in a conveniently small, double insulated and flame retardant enclosure. Contact us if you're interested in purchasing our products or need more information.




Sure-Start soft starters are ETL, CE and RoHS compliant.





Two Versions Available


    • Primary - includes the function of the contactor


  • Secondary - used in conjunction with an existing contactor








Features & Benefits


    • Rated for motors between 1.75 to 7 horse power electrical


    • Reduces locked rotor amperage (LRA)/inrush current up to 70% at start-up


    • Eliminates light flicker


    • Reduces start-up noise


    • Avoids torque stress fracture on pipes


    • Automatic optimization of motor start-up current


    • Reduced stress and heating of compressor/motor therefore extending the life


    • Allows systems to meet certain utility requirements


  • Easy installation with supplied wiring (special wiring options available)


Motor Protection Functions


  • Protects the compressor/motor from stalling at low voltages

  • Delay function limits number of motor starts per hour

  • Thyristor protected for long life (primary model only)

  • No extra motor contactor needed (primary model only)

  • Provides motor reversal protection during short power outages

  • Internal delay timers prevents rapid cycling in fault conditions

  • Provides brownout protectionSelf-testing diagnostics (primary model only)


Models


    • SS0B12-20SN (115V, 60/50Hz, 12-20 FLA)


    • SS1B08-16SN (230V, 60/50Hz, 08-16 FLA)


  • SS1B16-32SN (230V, 60/50Hz, 16-32 FLA)




Sure Start products also reduce blinking lights and dimming lights when large AC loads start up.
